POLARIMETRY STATION

Measure Polarization Levels

Coming Soon
Pre-Orders Now Available
​

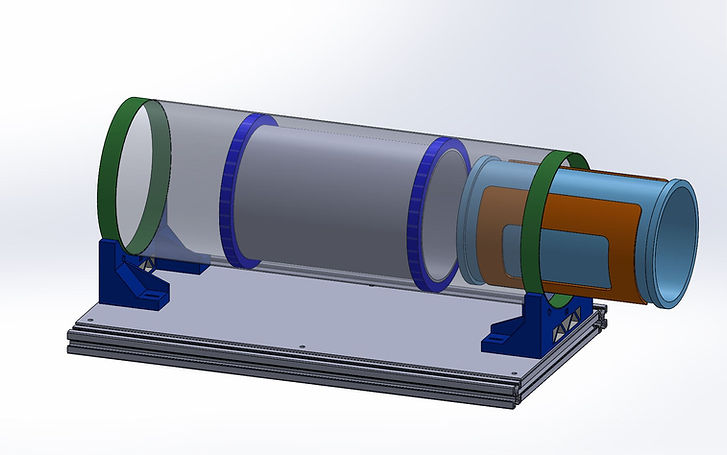

Schematic CAD Model Design Representations below:

Electro-Magnet
Shield
RF-Coil

 Low-Field NMR Polarimatry Station:

Measurement of Hyperpolarized Xenon-129

This Polarimetry Station can be easily used for quality assurance of your Hyperpolarized Xenon-129 sample in a Tedlar Bag

​

Features:

  • Bench Top setup (Dimensions: 62cmL x 35cmW x 34cmH)

  • Sample Size: Up to 1L in a Tedlar Bag

  • Can be customized to a different sample size: 0.1-2L at no extra charge.

  • Can be customized to Carbon-13 at no extra charge (one nucleus per system).

  • This system is enclosed in aluminum chassis.

  • The magnet can be potentially enclosed in a mu-metal shield for operation is high fringe fields: addition charge applies.

  • Detection coil is also enclosed in aluminum shielding to reduce electromagnetic interference.

  • Operating Field: 4mT at Xenon Resonance Frequency

  • Auto-Calibration using supplied water phantom.

  • Operates from a single plus: 120 and 240 VAc Options.

​

The perfect plug and play system to get you experimenting quickly and effortlessly.

We accept request for custom setups to help with your application.

​

Price: €35,000
